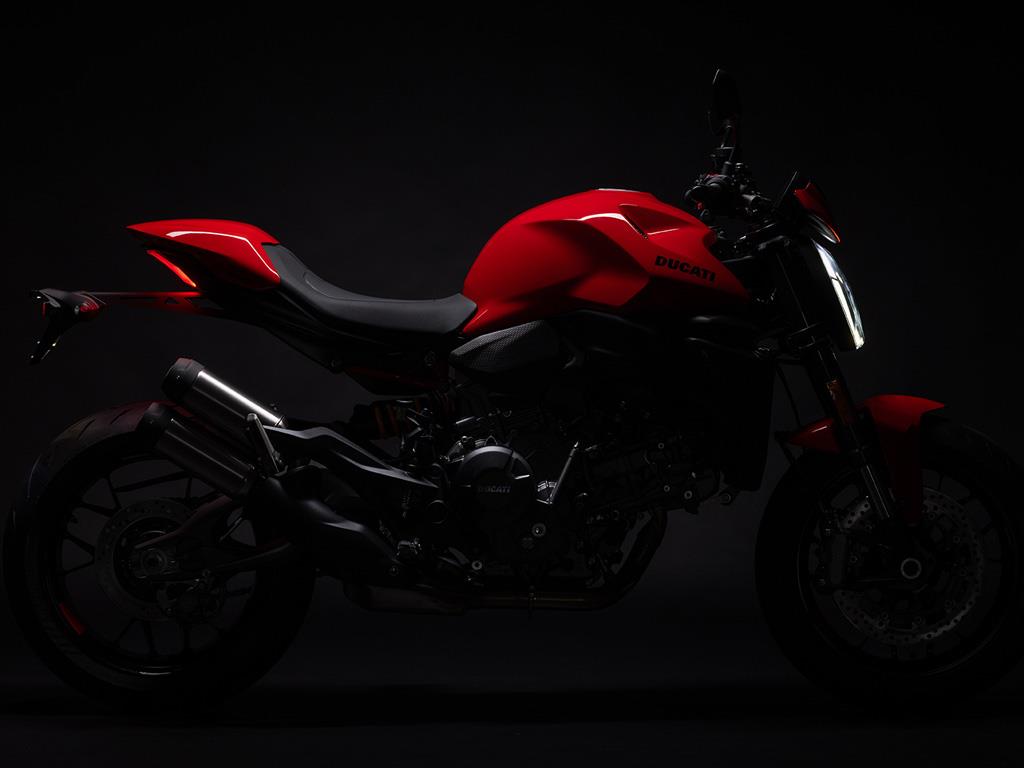

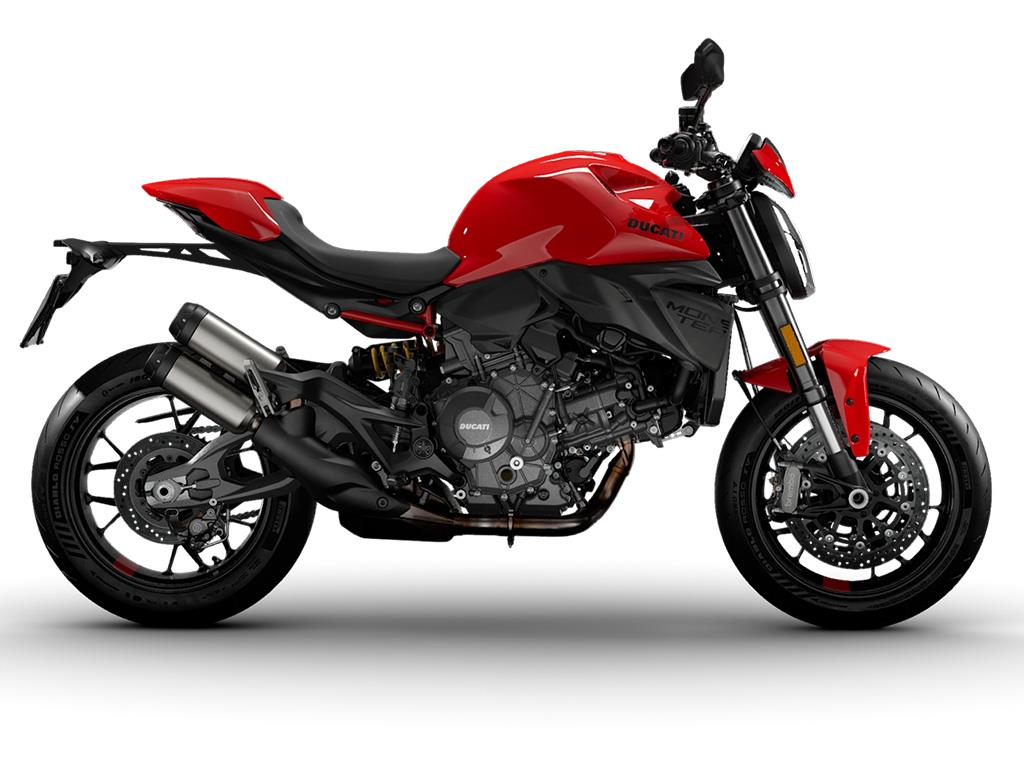

Monster +

Starting from £11,595.00

Model Promotions


Description & Specification

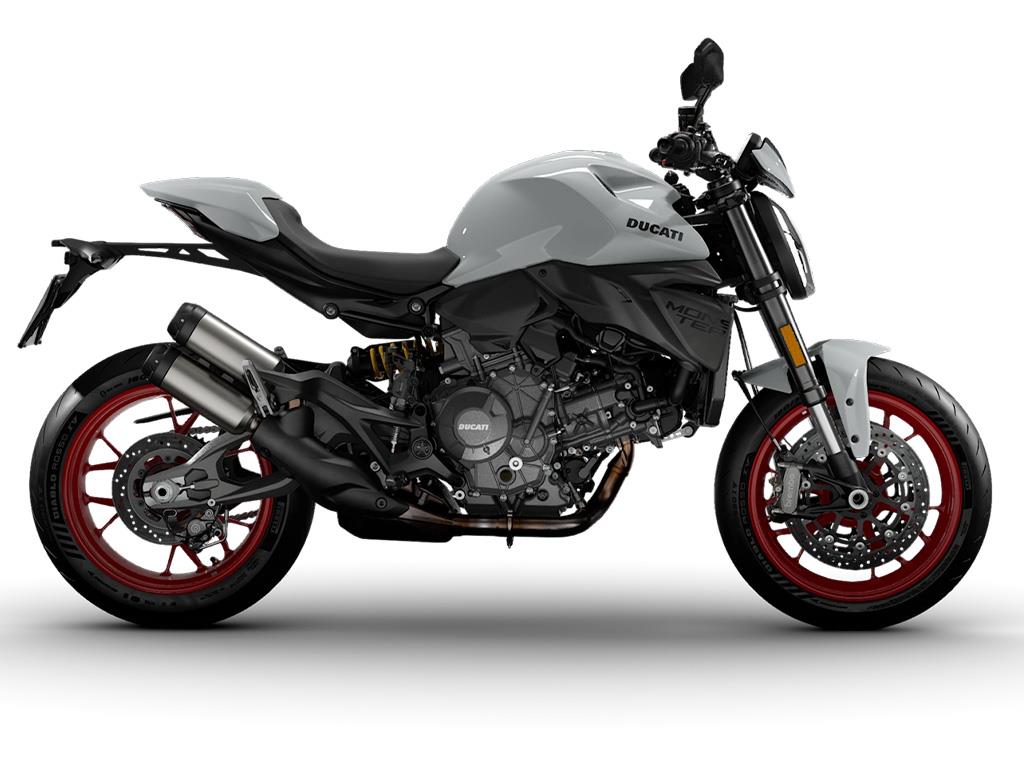

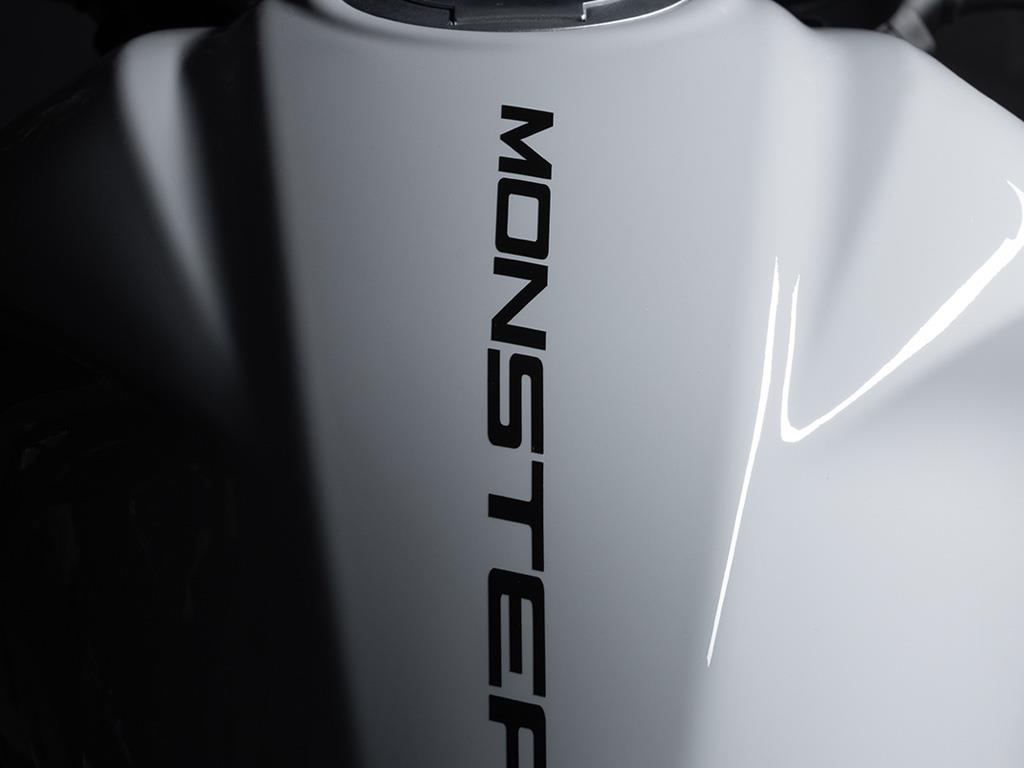

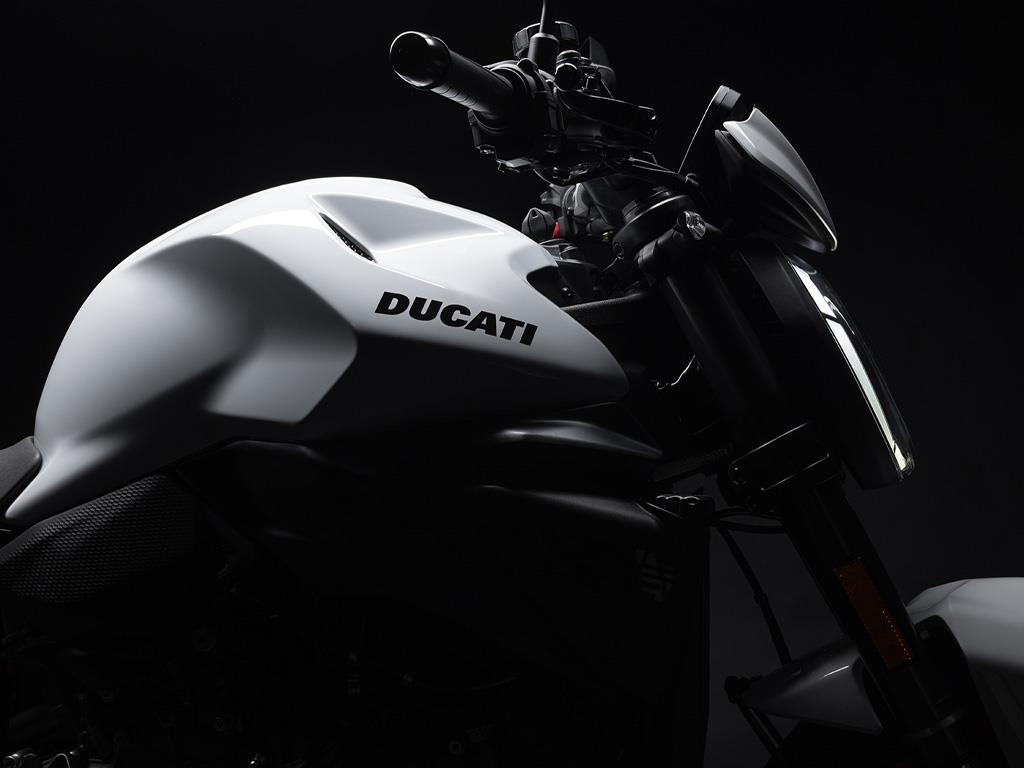

Just Fun! Now in Iceberg White.

A modern take on the Monster that highlights the personality of the bike and maximises enjoyment for the rider. Combining elegant and sporty details, the bike’s contemporary style is emphasised with the new Iceberg White colourway.

Even more sports attitude

In its new colour combination, the pure white of the frame and bright red selected for the seat upholstery highlight the simple, clean lines of the Monster. The red tags on the wheels add a sophisticated, sporty touch.

In the name of personal style

Monster has always been a symbol of customisation. Select a cover kit for a look that is bold, sporty and modern, and coordinate this with your favourite technical gear.

  • Frame

    Frame

    Aluminum alloy Front Frame.

    Rake

    24°

    Front Wheel

    Light alloy cast, 3.5" x 17"

    Front Tyre

    Pirelli Diablo Rosso III 120/70 ZR17

    Rear Wheel

    Light alloy cast, 5.5" x 17".

    Rear Tyre

    Pirelli Diablo Rosso III 180/55 ZR17

    Fuel Tank Capacity

    14 l (3.7 US gal)

    Dry Weight

    166 kg (366 lb)

  • Dimensions

    Wheelbase

    1,474 mm (58.0 in)

    Front Wheel Travel

    130 mm

    Rear Wheel Travel

    140 mm (5.1 in / 5.5 in)

    Seat Height

    820 mm (32.3 in) 800 mm (31.5 in) (accessory low seat) 775 mm (30.5 in) (accessory low seat + low suspension kit)

    Bore x Stroke

    94 mm x 67.5 mm

    Compression Ratio

    13.3:1

  • Suspension

    Front Suspension

    Ø 43 mm usd fork

    Rear Suspension

    Progressive linkage, preload adjustable monoshock, aluminium double-sided swingarm.

  • Brakes

    Front Brake

    2 x Ø 320 mm semi-floating discs, radially mounted Brembo M4.32 monobloc 4-piston callipers, radial master cylinder, Cornering ABS.

    Rear Brake

    Ø 245 mm disc, Brembo 2-piston floating calliper, Cornering ABS.

  • Performance

    Engine Type

    Testatretta 11°, V2 - 90°, 4 valves per cylinder, desmodromic valvetrain, liquid cooled.

    Displacement

    937 cc (57 cu in)

    Power

    111 hp (82 kW) @ 9,250 rpm

    Torque

    9.5 kgm (93 Nm, 69 lb ft) @ 6,500 rpm

    Exhaust

    Pre-muffler and twin muffler, catalytic converter and 2 lambda probes.

    Gearbox Type

    6 speed

    Gearbox Ratio

    1=37/15, 2=30/17, 3=28/20, 4=26/22, 5=24/23, 6=23/24

    Primary Drive

    Straight cut gears, ratio 1.85:1

    Final Drive

    Chain, front sprocket z15, rear sprocket z43

    Clutch

    Slipper and self-servo multiplate wet clutch with hydraulic control.

    Battery
